AMPHE FLEX VOLT
AMPHE FLEX VOLT is a high-voltage cable featuring an annealed copper wire (AC) conductor coated with extruded silicone rubber as insulation. Designed for 1000V/1500V high-voltage applications, it offers excellent heat resistance and operates reliably in temperature ranges from -40°C to +175°C/200°C. With the flexibility provided by silicone rubber insulation, this cable enhances wiring freedom and space efficiency in electrical component interconnections. It is ideally suited for high-voltage applications such as EVs, HEVs, and hybrid construction machinery.
Technical Information
| AMPHE FLEX VOLT Non-Shielded | |
|---|---|
| Standards | ISO19642 |
| Rated Voltage | AC 1000V / DC 1500V |
| Spark Test | 8000V AC |
| Insulation Resistance | ≧1012 Ω・m |
| Temperature class rating | －40℃ ～＋ 200℃（3000h） |
| Minimum Bending Radius (R) | 4×OD（Static installation） 8×OD（Dynamic installation*） |
| Recommended connector | SurLok Plus, PowerLok, HVSL, other Amphenolʼs HV connectors |
*Intended for rocking or vibration, not for cyclic bending.
| AMPHE FLEX VOLT Shielded | |
|---|---|
| Standards | ISO19642 |
| Rated Voltage | AC 1000V / DC 1500V |
| Spark Test | 8000V AC |
| Insulation Resistance | ≧1012 Ω・m |
| Temperature class rating | －40℃ ～＋ 175℃（3000h） |
| Minimum Bending Radius (R) | 4×OD（Static installation） 8×OD（Dynamic installation*） |
| Recommended connector | SurLok Plus, PowerLok, HVSL, other Amphenolʼs HV connectors |
*Intended for rocking or vibration, not for cyclic bending.

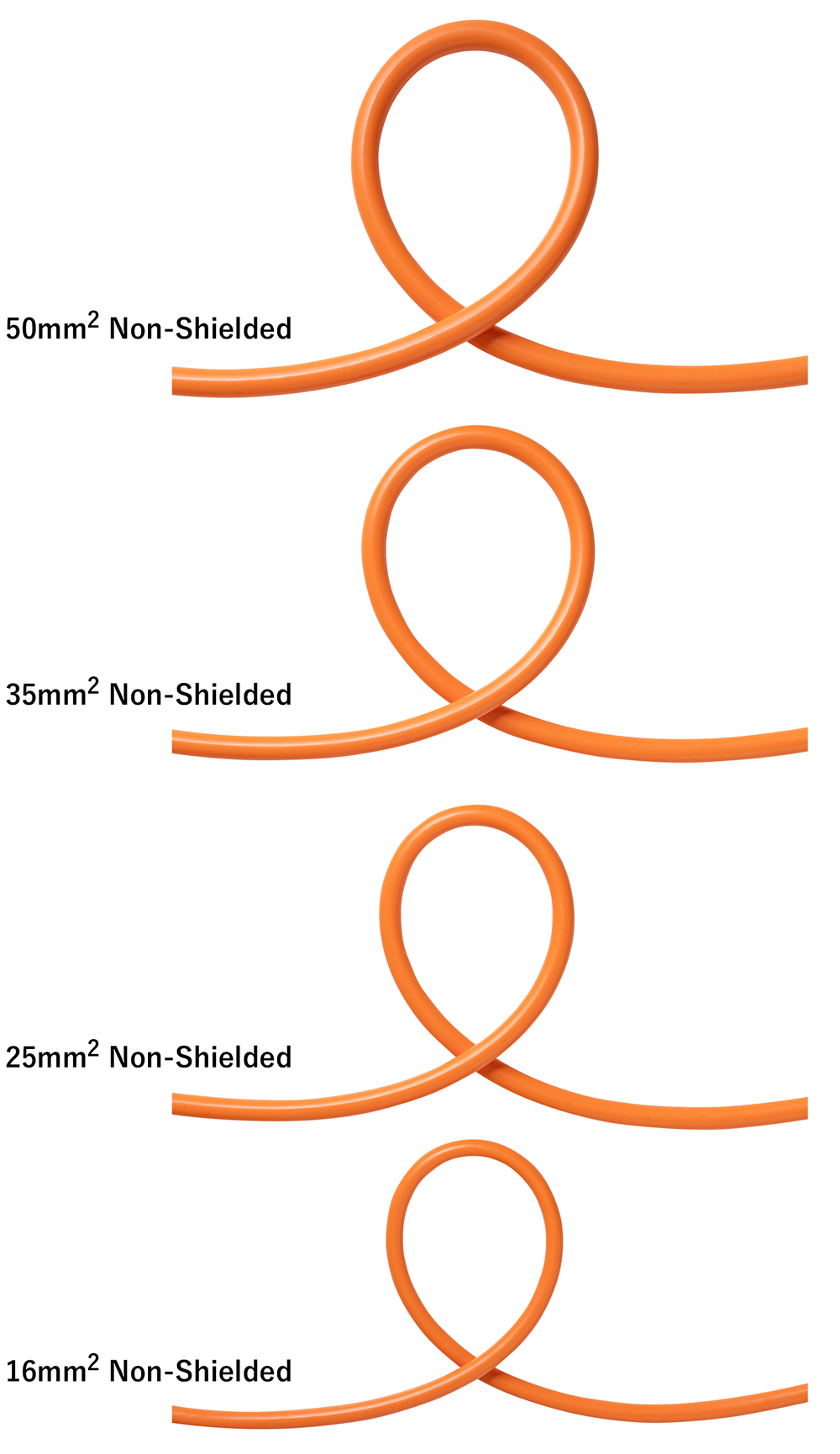

Industry-Leading Flexibility
Cable Specification
AMPHE FLEX VOLT Non-Shielded

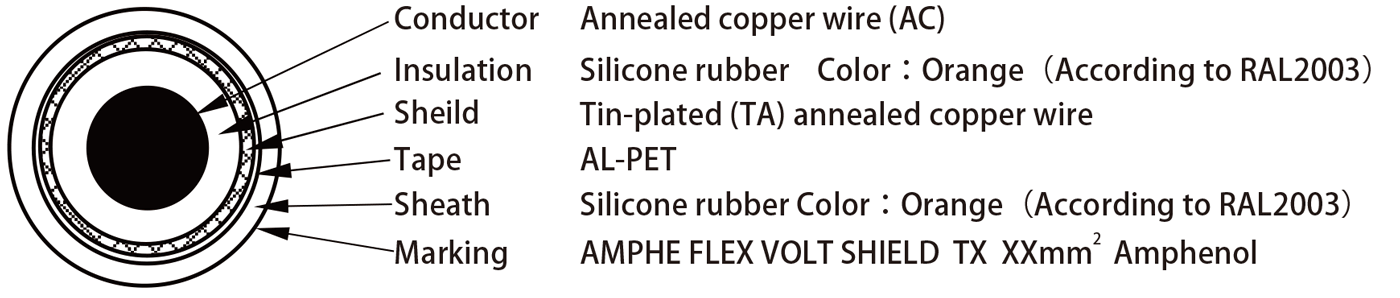

AMPHE FLEX VOLT Shielded
